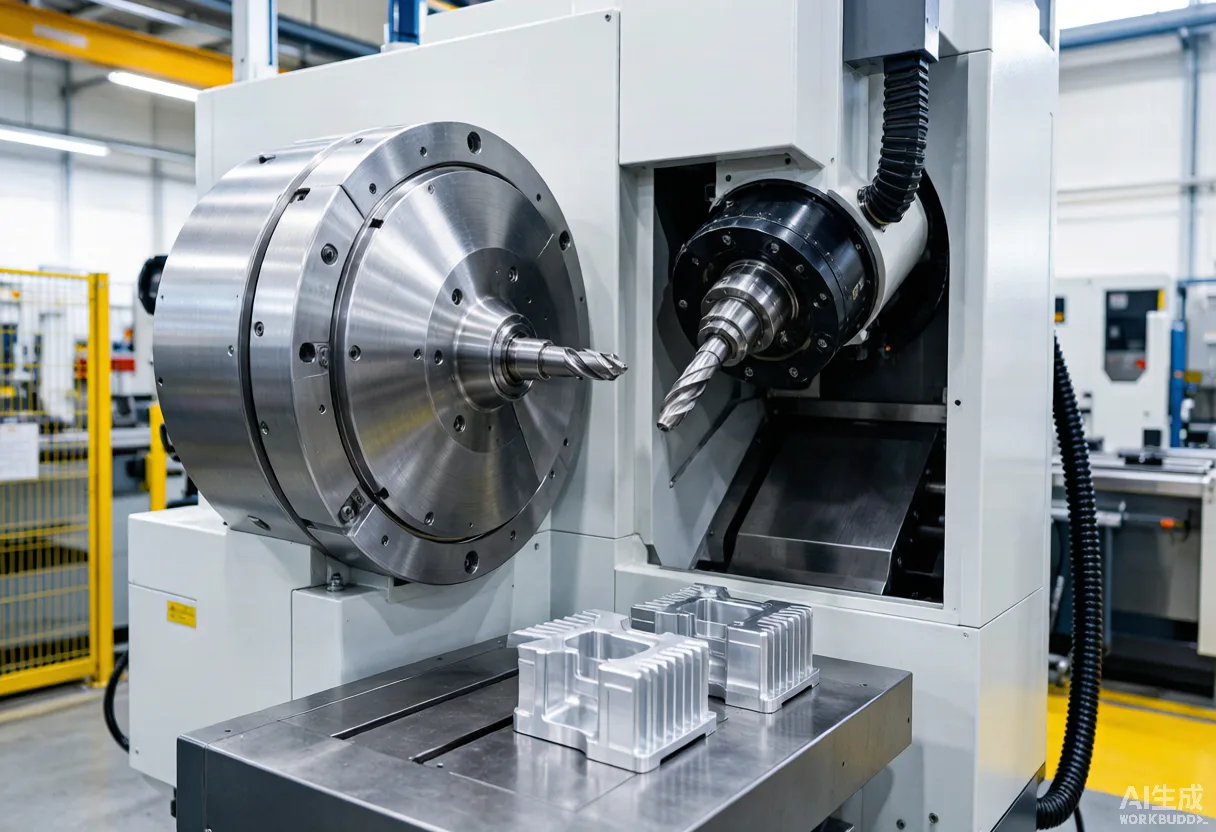

The shortest step from three-axis to five-axis: a Φ320 direct-drive cradle table on a vertical machining center platform your team already knows how to run.
What we advertise is what we are willing to sign.
The specifications below are published exactly as they appear in the technical agreement — not as they appear in a brochure.
Three things this model does better than the alternatives — and the numbers behind each of them.
A fully direct-driven five-axis cradle table — no gearing, therefore no backlash to compensate and no wear curve to manage over the life of the machine. Table load 100 kg. The spindle and the rotary table are cooled independently by a Gree-developed cooling system, so heat from one axis does not creep into the other.
0.01 mm positioning and 0.006 mm repeatability, stated over full travel and taken from the technical agreement. ‘Over full travel’ is the part of that sentence worth checking against any competing figure.
BT40 at 12,000 rpm, 24-tool magazine with ≈ 2.5 s tool-to-tool change, 48,000 mm/min rapids, Syntec 220MA-5 PLUS control. The platform, the tooling and the fixturing habits carry over from your three-axis machines.
| Parameter | Value | Basis |
|---|---|---|
| Positioning accuracy | 0.01 mm (over full travel) | Verified per signed technical agreement |
| Repeatability | 0.006 mm (over full travel) | Verified per signed technical agreement |
| Rotary table | Φ320 cradle-type | Verified per signed technical agreement |
| Rotary table load | 100 kg | Verified per signed technical agreement |
| X / Y / Z travel | 800 × 550 × 600 mm | Verified per signed technical agreement |
| Spindle taper / speed | BT40, 12,000 rpm | Verified per signed technical agreement |
| Spindle power | 11 kW | Verified per signed technical agreement |
| Spindle torque | 52.5 N·m | Verified per signed technical agreement |
| Rapid traverse, 3 axes | 48,000 mm/min | Verified per signed technical agreement |
| Tool magazine | 24 positions | Verified per signed technical agreement |
| Tool-to-tool change | ≈ 2.5 s | Official product line reference |
| Cooling system | GREE CNC in-house developed; spindle and rotary table cooled independently | Verified per signed technical agreement |
| Machine weight | 6,000 kg | Verified per signed technical agreement |
| CNC system | Syntec 220MA-5 PLUS | Verified per signed technical agreement |
| Rotary axis drive | Fully direct-drive, backlash-free, wear-free | Subject to final technical agreement |
| Cooling system | GREE CNC in-house developed | Subject to final technical agreement |
Tool-to-tool change is published at approximately 2.5 s, per the company’s official product line reference. The figure is a catalog-level value; confirm the exact value in the signed technical agreement for your order.
Where this model earns its place on the shop floor.
Angled faces, compound holes and interfaces that would otherwise need two or three separate three-axis setups — consolidated into one clamping on the cradle.
Complex curved surfaces machined in a single setup, which is the only reliable way to hold form accuracy across a contoured part.
Multi-plane features on relatively light parts — well inside the 100 kg table load, and a natural first five-axis job for a shop making the transition.
Send us the drawing and your monthly volume. We will come back with a machine recommendation, a cycle-time estimate and the technical agreement for this model.
