Gree 5-Axis CNC Machining Centers: Technology, Product Line & Specs

Executive summary — read this first.

Gree (Gree Intelligent Equipment, a Gree Electric subsidiary est. 2015) builds five-axis, turn-mill and horizontal machining centers with a notably high degree of in-house core components — spindle, linear motor and direct-drive rotary table.
The headline lineup includes the GA-FA320 (five-axis vertical, direct-drive rotary table), GA-UHD500 (high-speed, EV-focused), GA-FM3020 (dual-beam gantry, 2025 Geneva invention gold medal) and GA-VT540 (3C mirror-finish).
Published repeatability is around 0.006 mm; the high-speed gantry claims 120 m/min rapid traverse and ~80% higher efficiency than a conventional single five-axis setup.
Best fit: buyers who want one-stop scenario solutions (machine + robot + thermal control) and shorter lead time than European/Japanese imports — not necessarily the absolute tightest tolerance in the world.

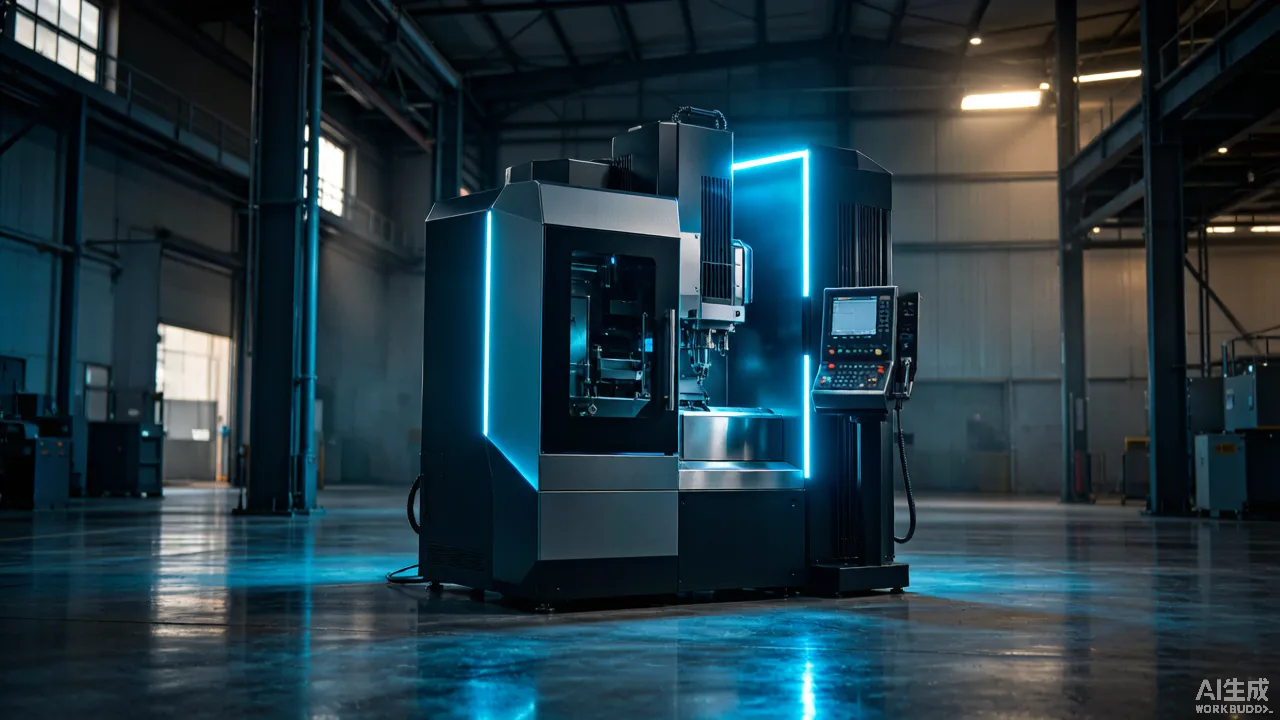

Gree five-axis vertical machining center with blue accent lighting in a modern factory — A Gree five-axis vertical machining center — the core of Gree Intelligent Equipment's CNC portfolio.

What "5-axis" means — and why it matters

A 5-axis machining center (five-axis = simultaneous 5-axis machining) moves the cutting tool and/or the workpiece across five axes at once, so a complex curved surface can be finished in a single setup. In plain terms: fewer clamping operations, less fixture cost, better accuracy on 3D shapes, and much shorter total cycle time versus a 3-axis machine doing the same part in multiple setups.

Gree's bet is that, for the parts driving today's demand — EV structural components, humanoid-robot joints, phone middle frames, aerospace and mold surfaces — 5-axis is no longer a luxury but the default. That is why its product line is built almost entirely around 5-axis and "3+2" (three linear axes plus two tilting axes) configurations.

Gree's 5-axis product line

The table below summarises the four machines Gree most visibly promotes. Figures are vendor-published and should be read as typical performance targets (see the credibility note at the end).

Model	Type	Positioning / typical use	Published key spec
GA-FA320	5-axis vertical, direct-drive rotary table	High-precision parts; robot joints	Repeatability ~0.006 mm; zero-backlash direct-drive (no wear)
GA-UHD500	High-speed 5-axis	New-energy-vehicle parts	Positioning 0.004 mm / repeatability 0.002 mm; 1.5 s tool change
GA-FM3020	Dual-beam gantry, double spindle	Large complex parts, 6-face machining	120 m/min rapid; ~80% efficiency gain vs single 5-axis; 2025 Geneva gold
GA-VT540	5-axis, 3C-focused	Phone middle frames, mirror finish	Repeatability ~0.006 mm; mirror-surface capability

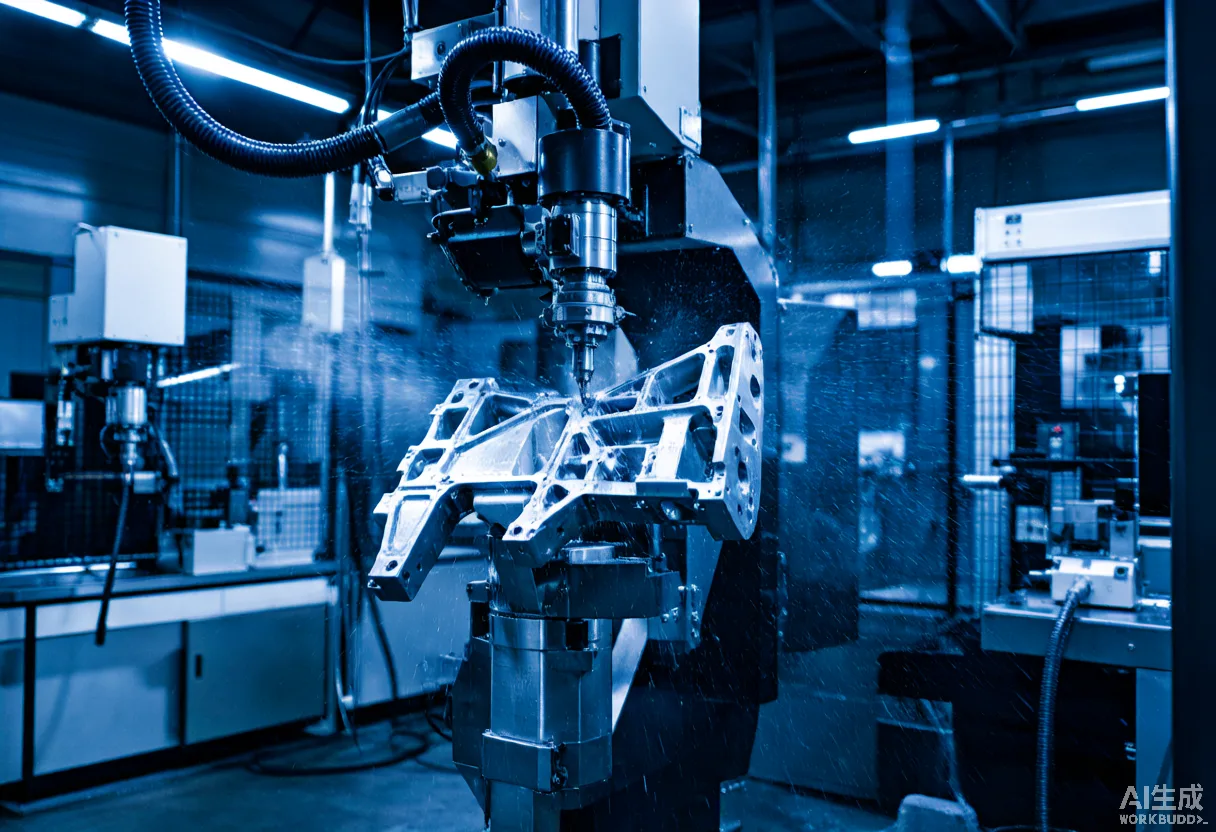

Five-axis CNC machining center cutting a complex aluminum automotive bracket — Left: 5-axis milling of a complex aluminum bracket. Right: a Gree gantry machining center on a smart factory floor.

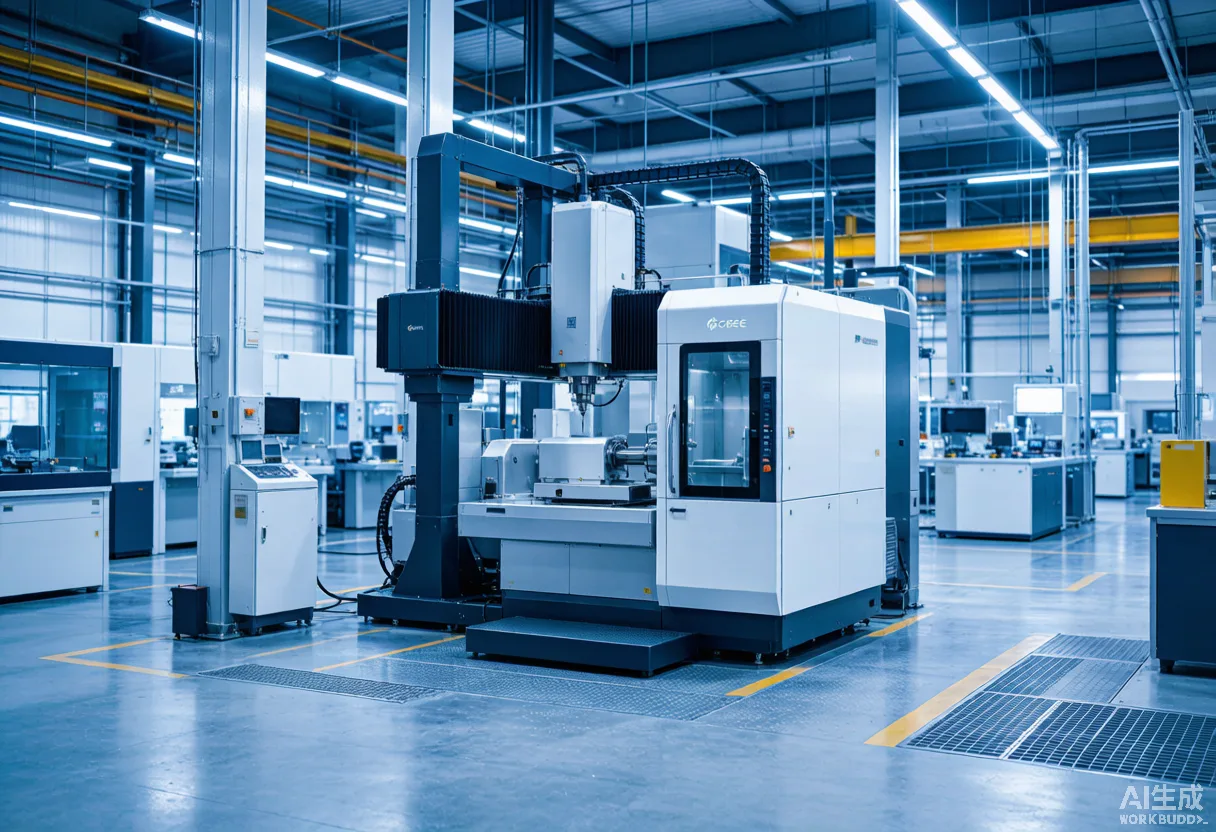

Gree smart factory floor with a large gantry five-axis machining center — Left: 5-axis milling of a complex aluminum bracket. Right: a Gree gantry machining center on a smart factory floor.

In-house core components: Gree's real differentiator

What separates Gree from many Chinese integrators is how much of the motion chain it builds itself. Gree states it develops:

High-torque electro-spindles (the rotating cutting-head assembly),
Linear motors (direct drive, no ball-screw transmission on some axes),
Direct-drive rotary / tilting tables (zero-backlash, claimed zero-wear on the FA series),
and the surrounding servo drives and CNC control logic.

The strategic logic is simple: Gree's air-conditioner business already made compressors, motors and controllers, so the know-how transfers directly into machine-tool motion systems. The honest caveat — covered in our flagship competitive analysis — is that the measurement and basic transmission parts (ultra-high-precision bearings, gratings/encoders) are still partly imported, which is why Gree is investing in a dedicated core-components park.

Where Gree 5-axis excels

Rather than covering every industry thinly, Gree concentrates on three scenarios where 5-axis plus fast delivery creates clear value:

EV New-energy vehicles — battery trays, motor housings, structural parts (see the dedicated EV guide).
Robotics Humanoid-robot components — joint parts where the "3+2" Gree solution is priced at roughly a third of a true imported 5-axis.
3C Consumer electronics — phone middle frames with mirror-grade surface finish.

How Gree compares

Gree is a challenger from the appliance world, not a century-old machine-tool house. Against German/Japanese premium brands it offers lower price and 1-month lead time; against pure-play Chinese five-axis specialists such as KEDE it is comparatively weaker on the CNC "brain" but stronger on integrated, application-ready solutions. The full head-to-head is in our Gree CNC vs competitors guide.

Data credibility rating

Claim	Source	Rating
~0.006 mm repeatability; GA-UHD500 0.004 mm positioning	Gree published specs / technical releases	Medium vendor-stated, not independently verified here
120 m/min gantry; ~80% efficiency gain	Gree / Geneva gold-award materials	Medium vendor-stated
Geneva International Invention Exhibition 2025 gold	Exhibition record (public)	High
"100% in-house" CNC & core parts	Gree marketing	Low contradicted by Gree's own admission on imported bearings/gratings

Which Gree 5-axis should you consider?

Large, complex, low-volume parts → GA-FM3020 gantry (6-face, high speed).
EV production-scale parts → GA-UHD500 (fast tool change, tight repeatability).
Robot joints / precision parts → GA-FA320 (direct-drive, zero-backlash).
3C mirror-finish → GA-VT540.

Bottom line. Gree's 5-axis line is a credible, application-focused option for buyers prioritising total solution, lead time and cost over the last micron of absolute precision. Validate the published specs on a paid trial part before committing volume.

Frequently asked questions

What does "5-axis" mean in CNC machining?

A 5-axis machining center moves the tool and/or workpiece across five axes at once, so a complex 3D part can be finished in a single setup. That means fewer fixtures, better accuracy on curved surfaces and shorter cycle time than a 3-axis machine doing the same part in multiple setups.

Which Gree 5-axis model should I choose?

Large, complex, low-volume parts: GA-FM3020 gantry. EV production-scale parts: GA-UHD500. Robot joints and precision parts: GA-FA320. 3C mirror-finish: GA-VT540. Gree positions each around a specific scenario rather than one general machine.

Is Gree a credible alternative to DMG MORI or Haas for 5-axis?

For cost, lead time and turnkey scenario solutions, Gree is competitive. For the tightest certified tolerances and decades of process know-how, German/Japanese premium brands still lead. Validate published specs on a paid trial part before volume commitment.

Are Gree's "in-house" component claims credible?

Gree's self-development is genuinely high on the motion-execution chain (spindle, linear motor, direct-drive rotary table, servo). Some measurement and transmission base parts (ultra-precision bearings, gratings) are still partly imported, which Gree itself has acknowledged.
